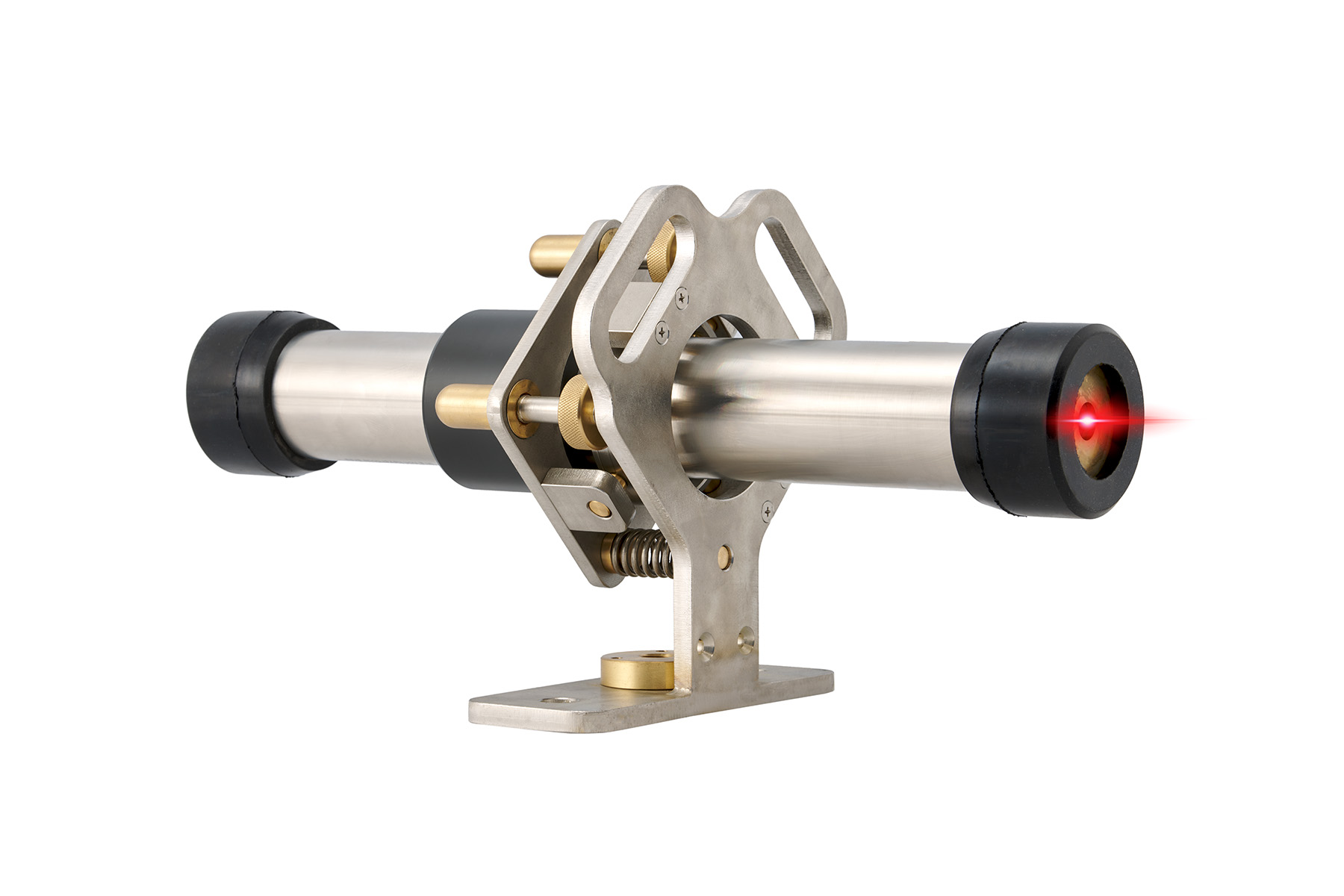

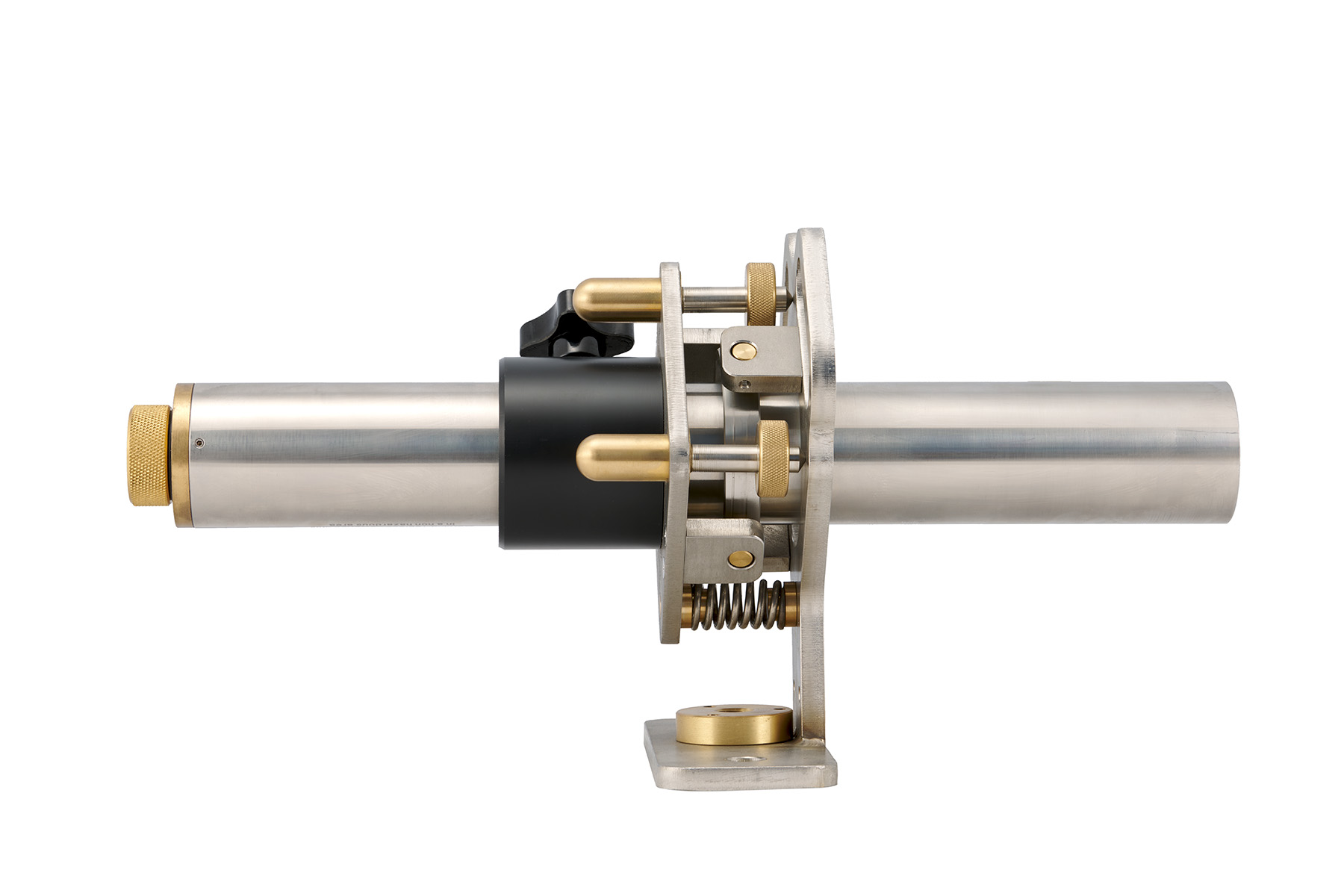

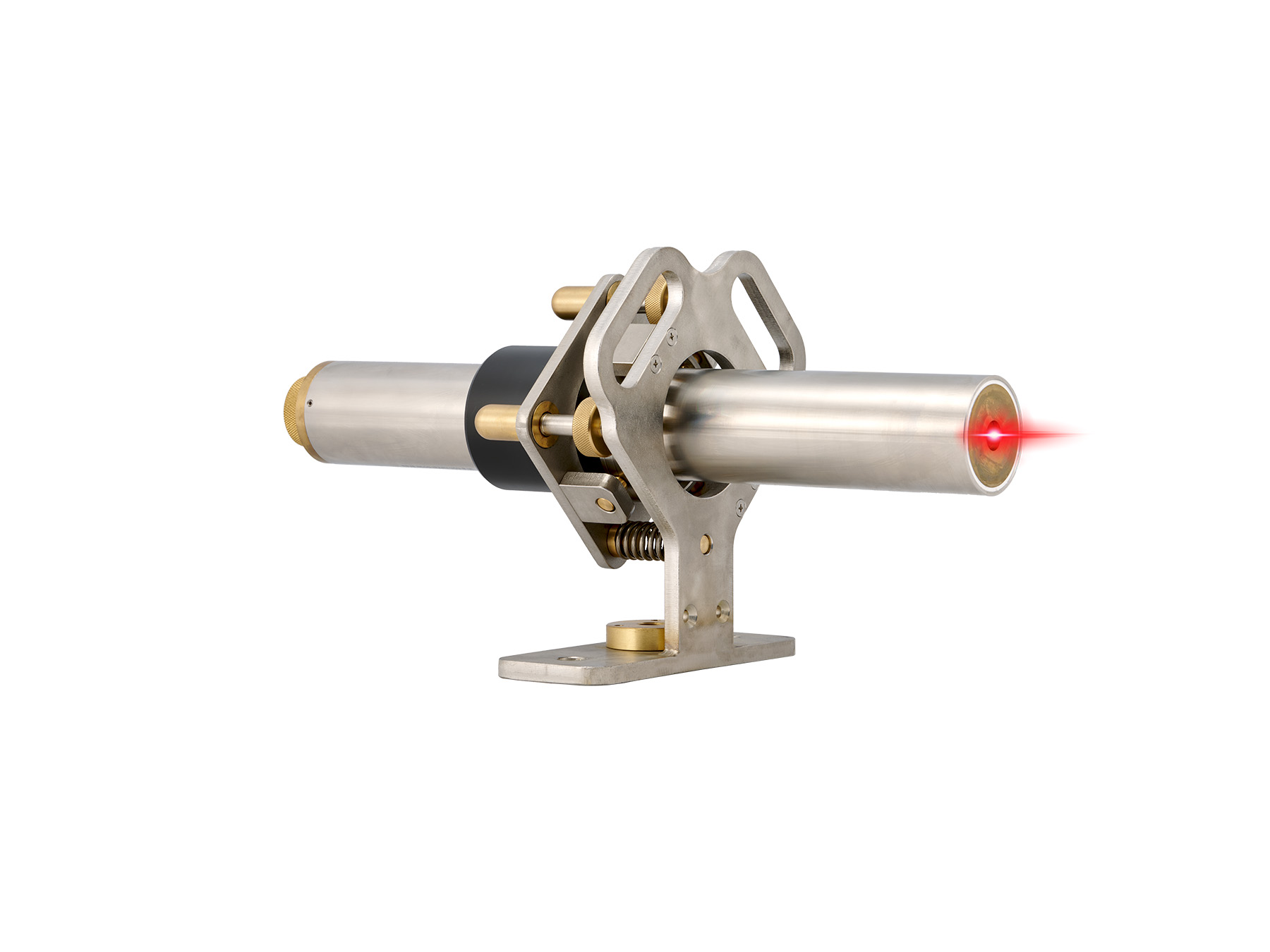

Intrinsically Safe Mining Laser LD.60.IS

AUD $7,939.80 inc GST

60 Series intrinsically safe mining lasers for use in gaseous and explosive environments without requiring explosion-proof containment.

SKU: LD.60.IS

Availability: In Stock

The LD.60.IS intrinsically safe laser enables accurate construction and alignment of tunnels being driven by tunnel boring machines, drill and blast, pipe jack or conventional hand techniques.

The units are intrinsically safe and therefore do not require explosion proof containment when working in gaseous environments such as methane/air mixtures: CERTIFICATE No. IECEx SIM 11.0003; classification code: Ex ia I/IIC T4 IP55

The units are waterproof, rugged and constructed from stainless steel and brass. The laser is based on diode technology and powered by four standard ‘D’ cells for extra long operating time.

Additional information

Laser beam	658 nm (red)
Beam diameter	13 mm
Laser class	2M
Peak output power	3 mW
Operating range	Up to 500 m
Power supply	4 x D cell alkaline batteries: Panasonic LR20(XW)
Battery operating time	300 hrs
Dimensions	Length: 457 mm; diameter: 60 mm
Weight	3.7kg including batteries
Operating temperature	-20 deg C to +50 deg C
IP rating	IP55
