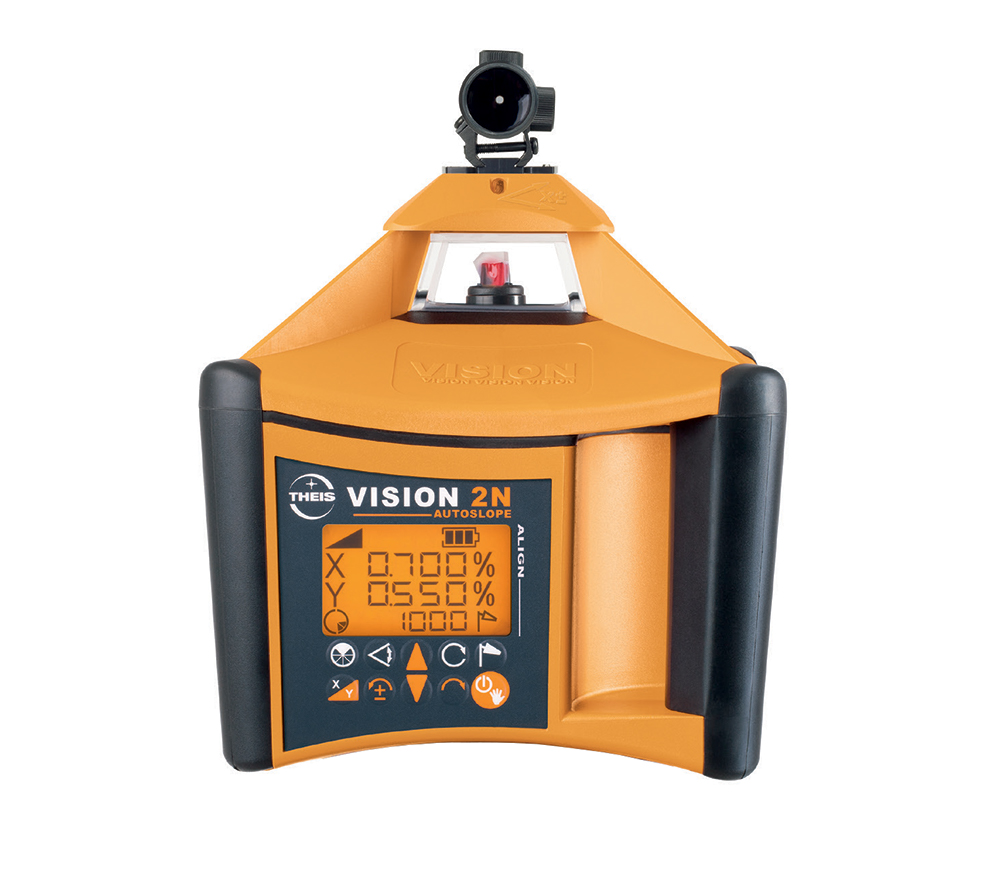

Vision 2N Autoslope Align Grade Laser

AUD $7,125.80 inc GST

Horizontal/vertical dual grade laser with ‘AUTOSLOPE’ and ‘ALIGN’ functions.

SKU: VIS.2NA.ALIGN.K1

Availability: In Stock

Horizontal/vertical dual grade laser with automatic monitoring and adjustment of the laser plane (Autoslope) in 2 axes. The plane is monitored electronically and immediately adjusted following mechanic or thermal changes.

Features

Dual grade slope +/- 15 % with adjustment (Autoslope)
Storage of last slope values
Range up to 750 m (radius)
Illuminated LCD display
Masking function of the laser beam
Manual slope
Receiver TE 90 Align for automated alignment

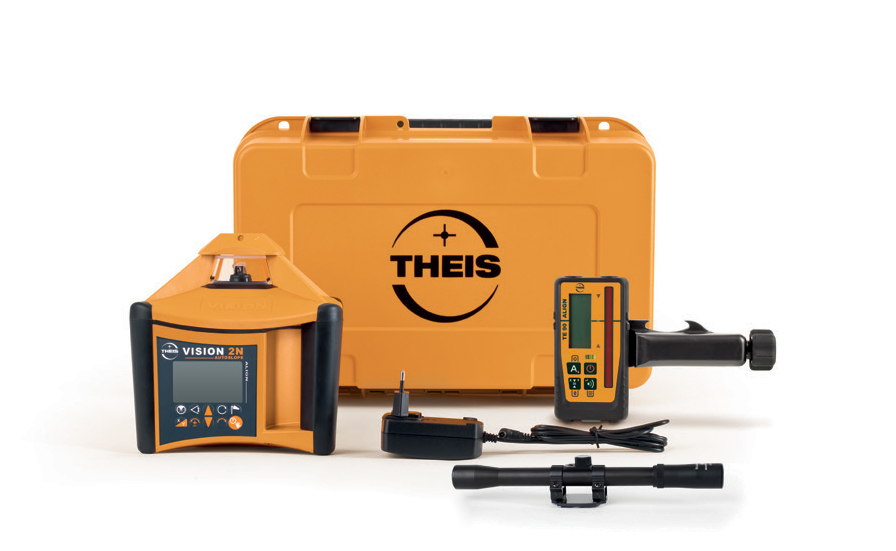

Standard Kit Includes (VIS.2NA.ALIGN.K1)

Vision 2N Autoslope Align grade laser
TE 90 Align hand-held receiver
Scope
Rechargeable battery pack
Battery charger
Operator manual
Carry case

Brochure download

Vision Grade Laser Brochure

Additional information

Laser class	Class 3R
Laser source	660 nm laser diode (red)
Output power	< 5 mW
Operating distance	750 m
Horizontal/vertical	Horizontal & vertical
Self-levelling range	+/- 5 deg
Levelling accuracy	+/- 1.5mm @ 30m
Grade range	+/- 15%
Grade compensation	Yes
Slope monitoring	Yes
Grade accuracy	+/- 0.025%
Align function	Yes
Rotating speed	0 – 1,000rpm
Scan function	10deg – 80deg
Partial mask mode	Yes
Power source	Rechargeable Ni-Mh battery pack or alkaline D cells
Battery life	70 hrs (rechargeable) / 120 hrs (alkaline)
Charging time	6 hrs
Operating temperature	-15deg C to 50deg C
Weight	3 kg
