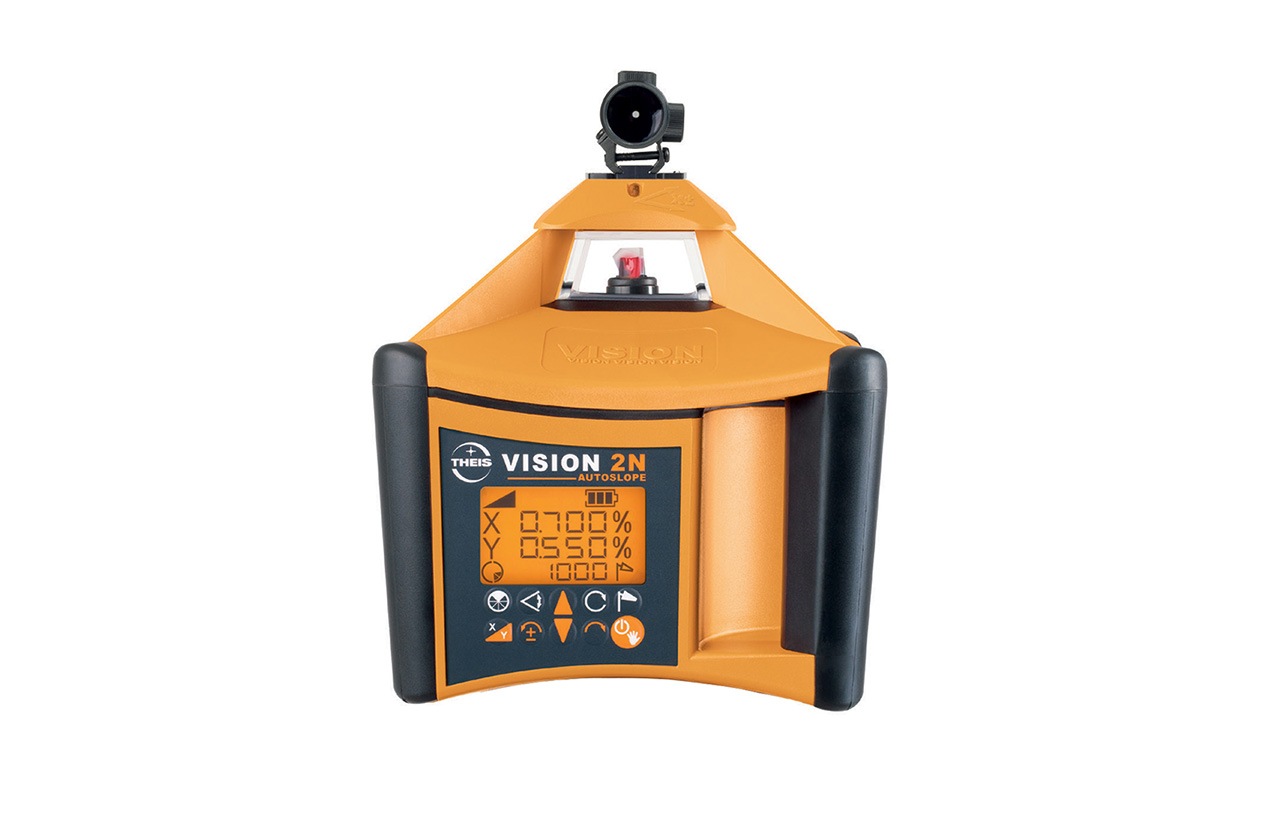

Vision 2N Autoslope Grade Laser

AUD inc GST

Horizontal/vertical dual grade laser with ‘AUTOSLOPE’ feature.

SKU: VIS.2NA

Availability: In Stock

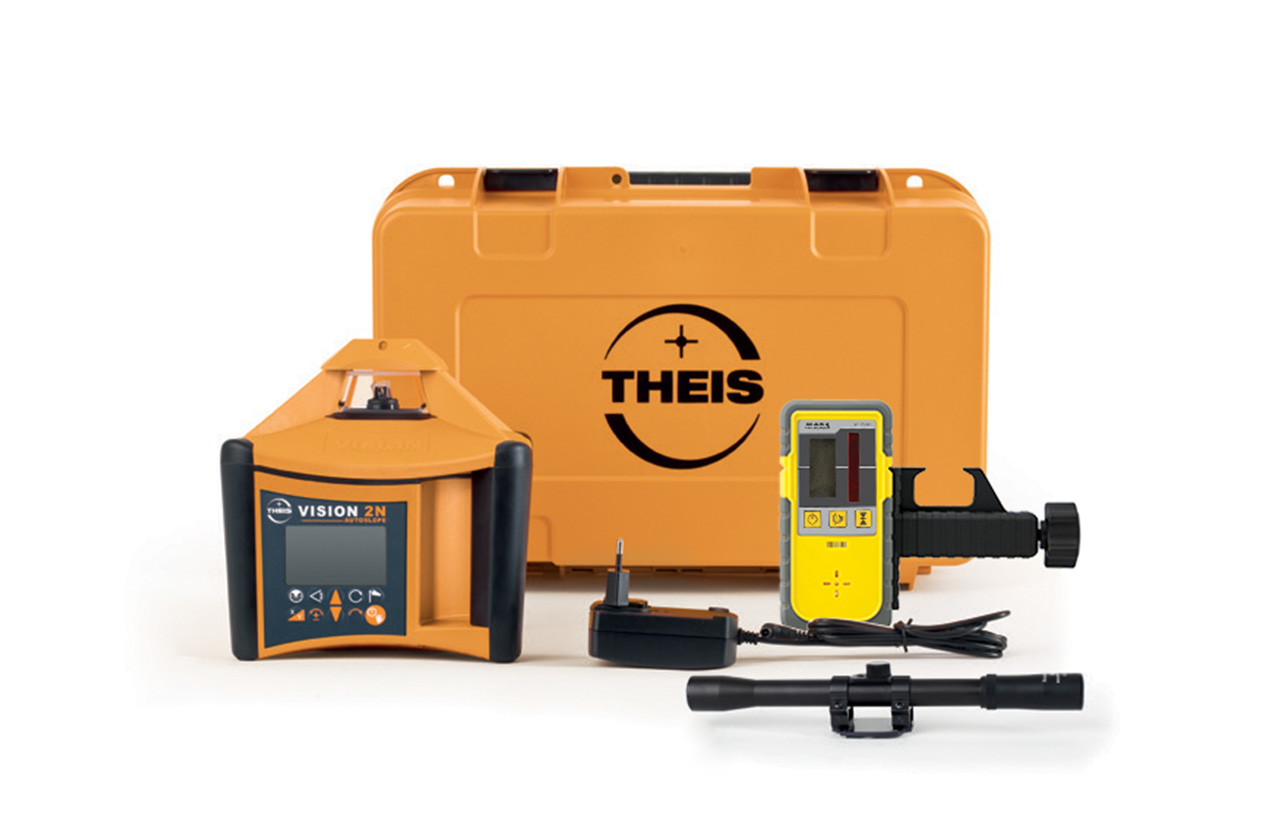

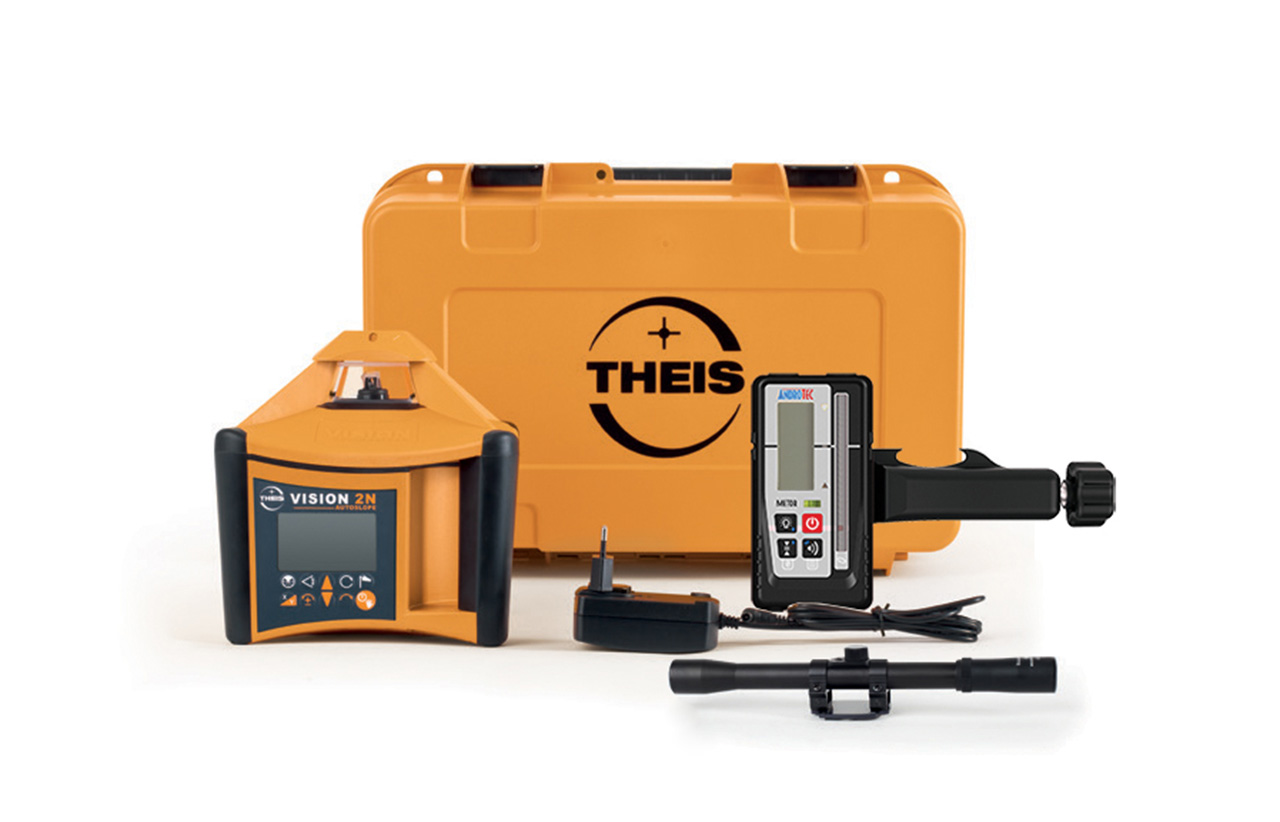

Available in following packages

Clear

Horizontal dual grade laser with automatic monitoring and adjustment of the laser plane (Autoslope). The plane is monitored electronically and immediately adjusted following mechanic or thermal changes.

Features

Dual grade slope +/- 15 % with adjustment (Autoslope)
Storage of last slope values
Range up to 750 m (radius)
Illuminated LCD display
Masking function of the laser beam
Manual slope

Brochure download

Vision Grade Laser Brochure

Additional information

Laser class	Class 3R
Laser source	660 nm laser diode (red)
Output power	< 5 mW
Operating distance	750 m
Horizontal/vertical	Horizontal & vertical
Self-levelling range	+/- 5 deg
Levelling accuracy	+/- 1.5mm @ 30m
Grade range	+/- 15%
Grade compensation	Yes
Slope monitoring	Yes
Grade accuracy	+/- 0.025%
Align function	No
Rotating speed	0 – 1,000rpm
Scan function	10deg – 80deg
Partial mask mode	Yes
Power source	Rechargeable Ni-Mh battery pack or alkaline D cells
Battery life	70 hrs (rechargeable) / 120 hrs (alkaline)
Charging time	6 hrs
Operating temperature	-15deg C to 50deg C
Weight	3 kg
